DIMENSIONS OF WORM DRIVE HOSE CLAMPS
(Suitable for Hose Outside Diameter) BS. 5315/1976 & IS4762/1984
Commercial Range



IS 4762 Size
Type 'A

Klip-wel
Size

BS 5315 Size
Type 'S'



12

000

12

16

00M

16

20

00

20

22

0

22

25

25A

25

--

0-0X

--

--

0X

--

30

1A

30

35

35A

35

--

1

--

40

1X

40

45

45A

45

50

2A

50

--

2

55

60

2X

60

70

3

70

--

75A

--

80

3X

80

90

4

90

100

4X

100

--

110A

--

--

5

120

130

130A

--

--

6

140

--

6X

--

160

160A

--



Outside Diameter Hose -x-

MM

INCHES

Min

Max

Min

Max

10

13

5/16"

1/2"

11

16

3/8"

5/8"

13

20

1/2"

3/4"

16

22

5/8"

7/8"

18

25

3/4"

1"

16

25

3/4"

1"

20

28

3/4"

1-1/8"

22

30

7/8"

1-1/4"

25

35

1"

1-3/8"

30

38

1"

1-1/2"

30

40

1-1/8"

1-5/8"

32

45

1-1/4"

1-3/4"

38

50

1-1/2"

1-7/8"

42

55

1-3/4"

2-1/8"

45

60

2"

2-3/8"

50

70

2-1/4"

2-3/4"

55

75

2-1/2"

3"

60

80

2-3/4"

3-1/8"

70

90

2-7/8"

3-1/2"

80

100

3"

4"

90

110

3-1/2"

4-3/8"

100

120

4"

4-3/4"

110

130

4-3/8"

5-1/4"

125

140

5"

5-1/2"

135

150

5-1/2"

6"

140

160

5-5/8"

6-3/8"



::Example ::

Item No : 2A : 38-50
Klip-Wel Size No. 2A (As per IS 4762 :50) Clamping Range : 38-50 This means it is suitable for diameters between 38mm. and 50mm. However if the clamps are used for other than the specified range then proper functioning as desired  may not be obtained





Size
Code

Outside Diameter of Hose



MM.

Inches

KW-24

150-175

6"-7"

KW-25

175-200

7"-8"

KW-26

200-225

8"-9"

KW-27

225-250

9"-10"

KW-28

250-275

10"-11"

KW-29

275-300

11"-12"

Size Code

Outside Diameter of Hose



MM.

Inches

KW-30

300-325

12"-13"

KW-31

325-350

13"-14"

KW-32

350-375

14"-15"

KW-33

375-400

15"-16"

KW-34

400-425

16"-17"

KW-35

425-450

17"-18"

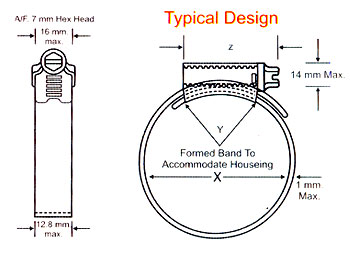

::Dimensions ::

Size x

Y (Max.)

Z (Max)

12-20

14mm.

25mm.

22-25

20mm

25mm.

28-45

25mm

30mm.

45 & Above

28mm

33mm.
